Specifications
◆ Application: Automotive air conditioning systems
◆ Function: Throttling and pressure reduction, flow regulation, maintaining superheat, preventing liquid slugging and abnormal overheating
◆ Advantages: Compact size, lightweight, easy installation, excellent stability
Product Specifications
| Model Name | Capacity (RT) | Cut-off Superheat (kgf/cm²) | Withstanding Pressure (kgf/cm²) | Leakage Pressure (kgf/cm²) | Ambient Temperature (°C) | 0°C | 10°C |
| PBX-I Series | 1.0 | 1.60 | Intake: 53 Exhaust: 22 | Intake: 35 Exhaust: 15 | -40 to 120 | - | - |
| PBX-I Series | 1.5 | 1.60 | Intake: 53 Exhaust: 22 | Intake: 35 Exhaust: 15 | -40 to 120 | - | - |
| PBX-I Series | 2.0 | 1.60 | Intake: 53 Exhaust: 22 | Intake: 35 Exhaust: 15 | -40 to 120 | - | - |
| PBX-L Series | - | 1.40 | - | - | - | - | - |

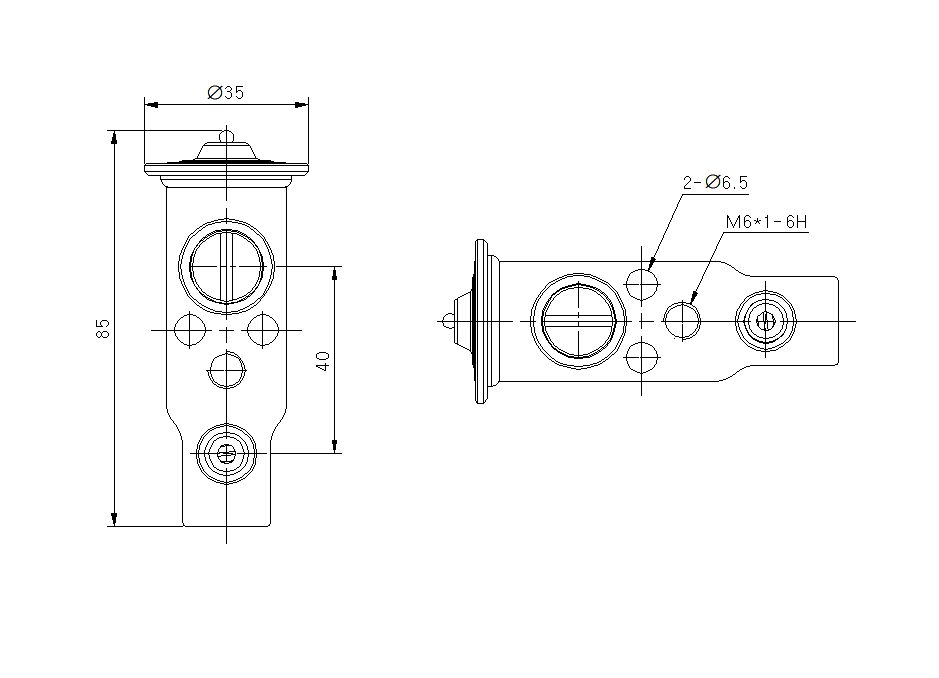

Drawing Specifications
