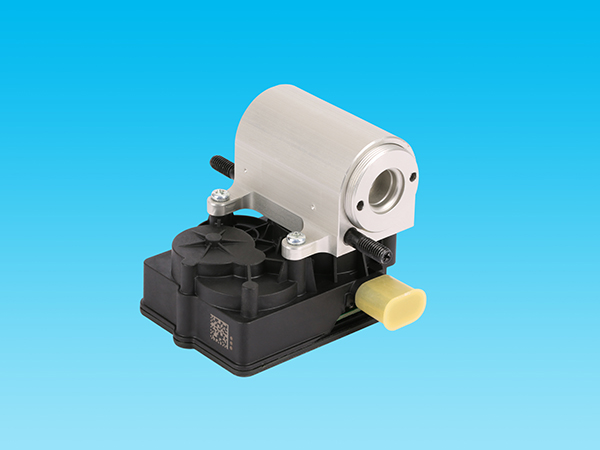

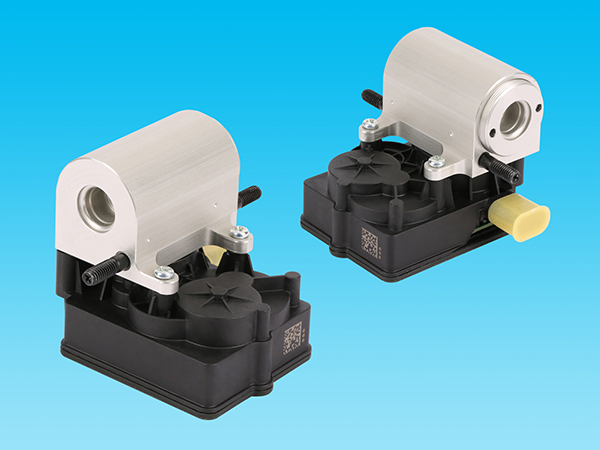

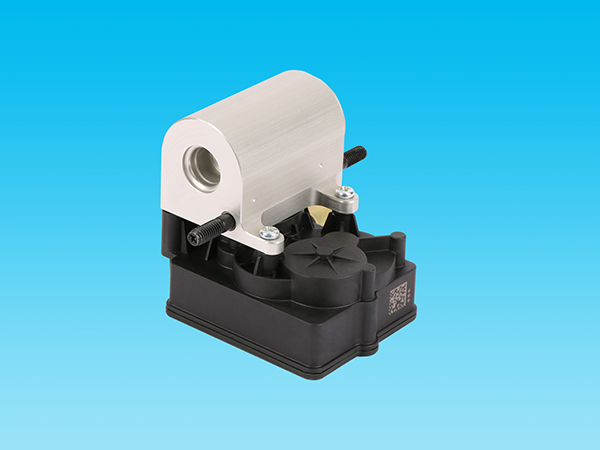

Expansion Valve PEBX

Beijing Sincode Technology Co., Ltd. was established in March 2003 and is located at the foot of Yuquan Mountain in Beijing. As a high-tech enterprise integrating research and development, production, and operation...

Product Categories

Automotive Parts

Learn More

Product Introduction

Specifications

◆ Application: Automotive air conditioning systems
◆ Function: Automatically regulates refrigerant flow to ensure optimal system operation, achieving rapid cooling/heating, precise temperature control, and energy efficiency.
◆ Advantages: Compact installation space, low height, small volume, lightweight, optimized flow channels, reduced noise, fast response, and energy saving.
◆ Certification: cUL (Compliant with LVD or PED directives)

Product Specifications

Model Name	Electrical Specifications	0°C (MPa)	10°C (MPa)	Remarks
SOL-TXV	DC12V 0.85A	2.3 ± 0.1	3.15 ± 0.2	R-1234A

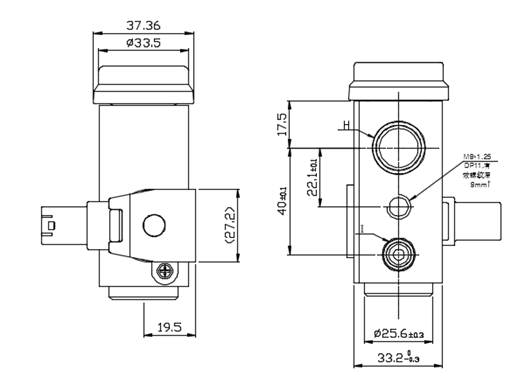

Drawing Specifications
