PSP (Single-Pressure Switch)-Automotive Parts-Sincode-Beijing Sincode Technology Co., Ltd

Home > Products > Automotive Parts

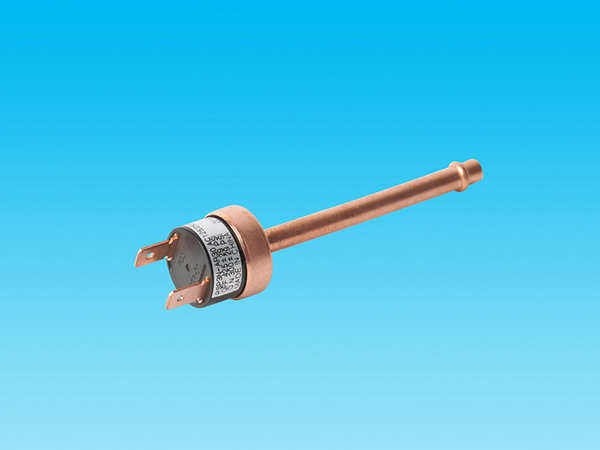

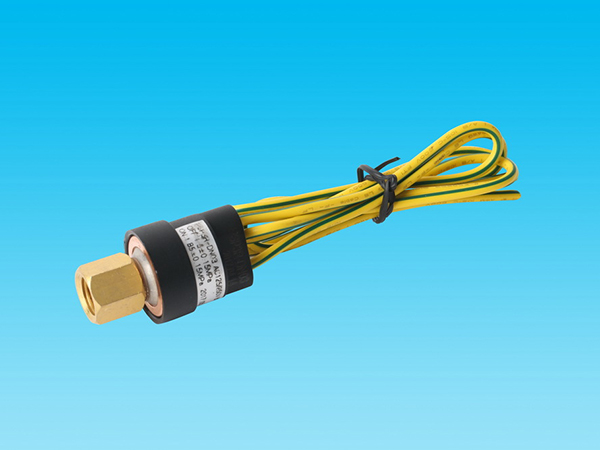

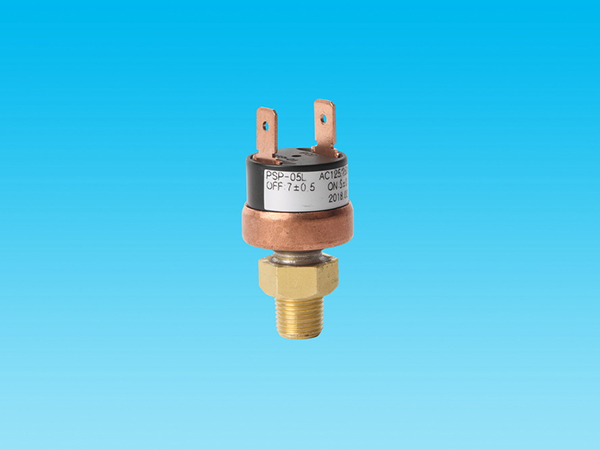

PSP (Single-Pressure Switch)

Beijing Sincode Technology Co., Ltd. was established in March 2003 and is located at the foot of Yuquan Mountain in Beijing. As a high-tech enterprise integrating research and development, production, and operation...

Product Categories

Automotive Parts

Learn More

Product Introduction

Specifications

◆ Application: Refrigeration equipment
◆ Function: High and low pressure protection for refrigeration systems
◆ Advantages: Flexible installation with threaded quick-connectors or copper tube welding structures; optional blade-type or wire-type electrical connections; customizable pressure settings based on customer requirements
◆ Certification: cUL, TUV, KC, CQC

Product Specifications

Model Name	Electrical Specifications	Pressure Range (kgf/cm²)	Leakage Pressure (kgf/cm²)	Max. Withstanding Pressure (kgf/cm²)
PSP 5R/N Series	AC125V/6A, 250V/4A	0.3 ~ 30	45	50
PSP 3R/N Series	-	-	-	-

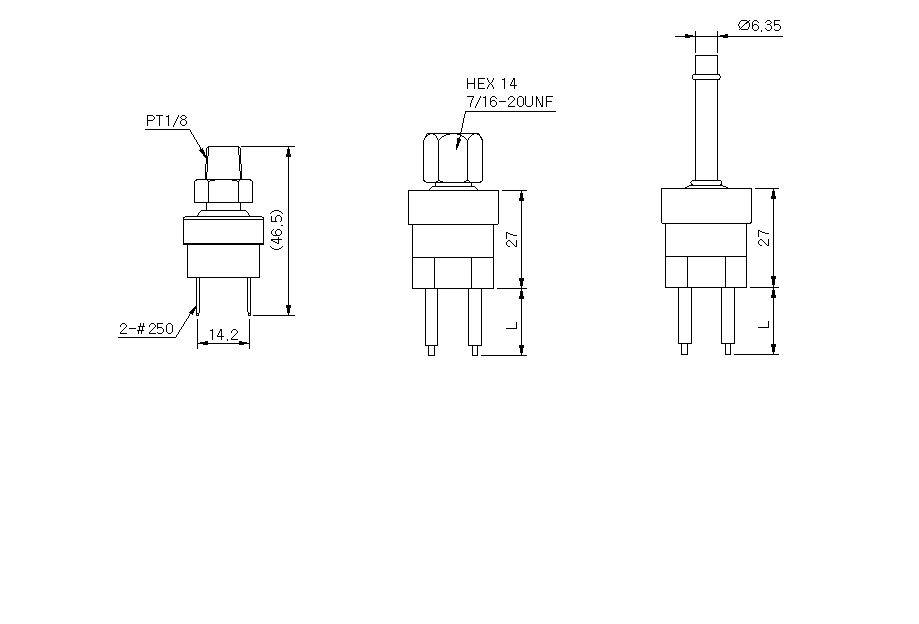

Drawing Specifications
