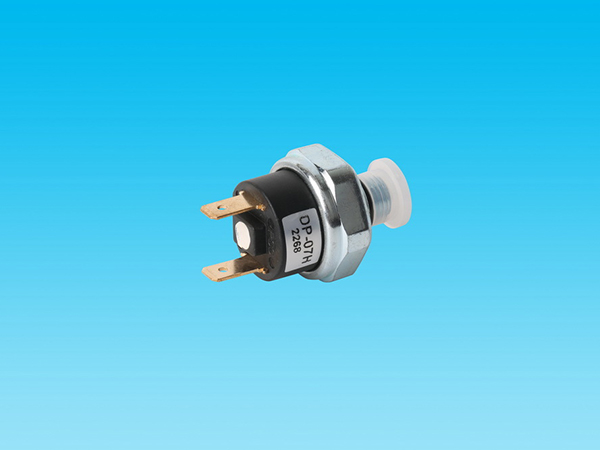

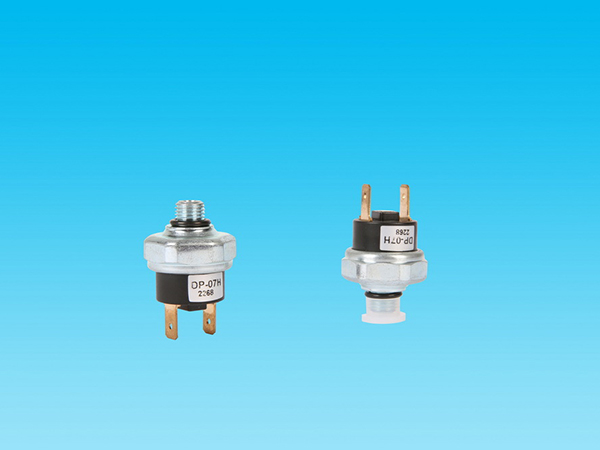

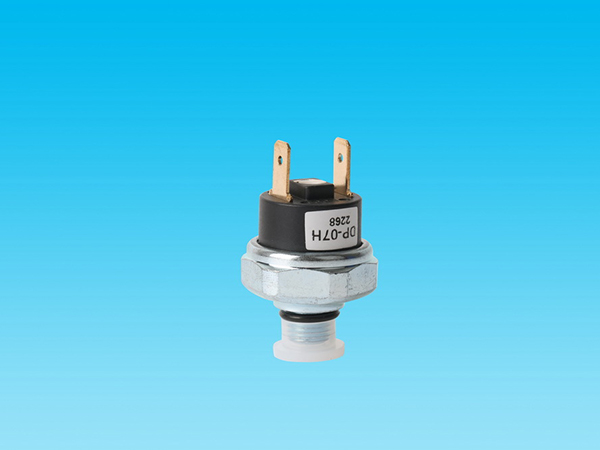

Pressure Switch DP

Beijing Sincode Technology Co., Ltd. was established in March 2003 and is located at the foot of Yuquan Mountain in Beijing. As a high-tech enterprise integrating research and development, production, and operation...

Product Categories

Automotive Parts

Learn More

Product Introduction

Specifications

◆ Application: Automotive air conditioning systems
◆ Function: Protects the compressor from abnormal high or low pressure conditions in the automotive air conditioning system
◆ Advantages: Dual-pressure switch capable of responding to both high and low pressure conditions

Product Specifications

Model Name	Electrical Specifications	Pressure Range (kgf/cm²)	Leakage Pressure (kgf/cm²)	Max. Withstanding Pressure (kgf/cm²)
DP-07 Series	DC 24V, 2.5A DC 12V, 5.0A	2~27	36	54
DP-07H Series	-	2~32	36	54

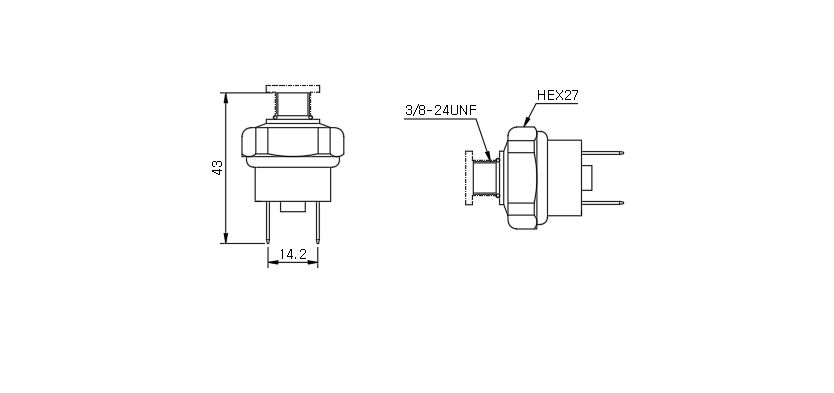

Drawing Specifications
